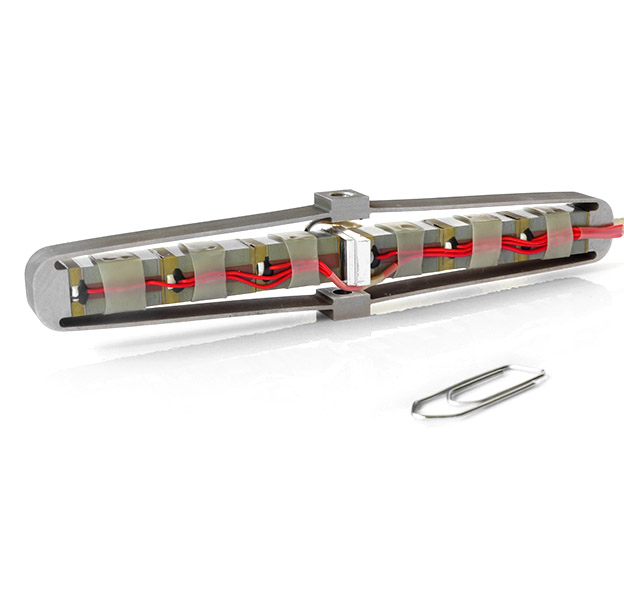

APA2000L

Amplified Piezo Actuator

Applications: Helicopter flaps – High frequency shakers – Material stress cycling – Mirror positioning in telescopes and instruments

Blocked Force	62
Capacitance	26
Nominal Stroke	2010
Stiffness	0,03
Resonance frequency	87
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 2D file
Download STEP file
Technical datasheet

Categories Amplified piezo actuator, Piezo actuators
