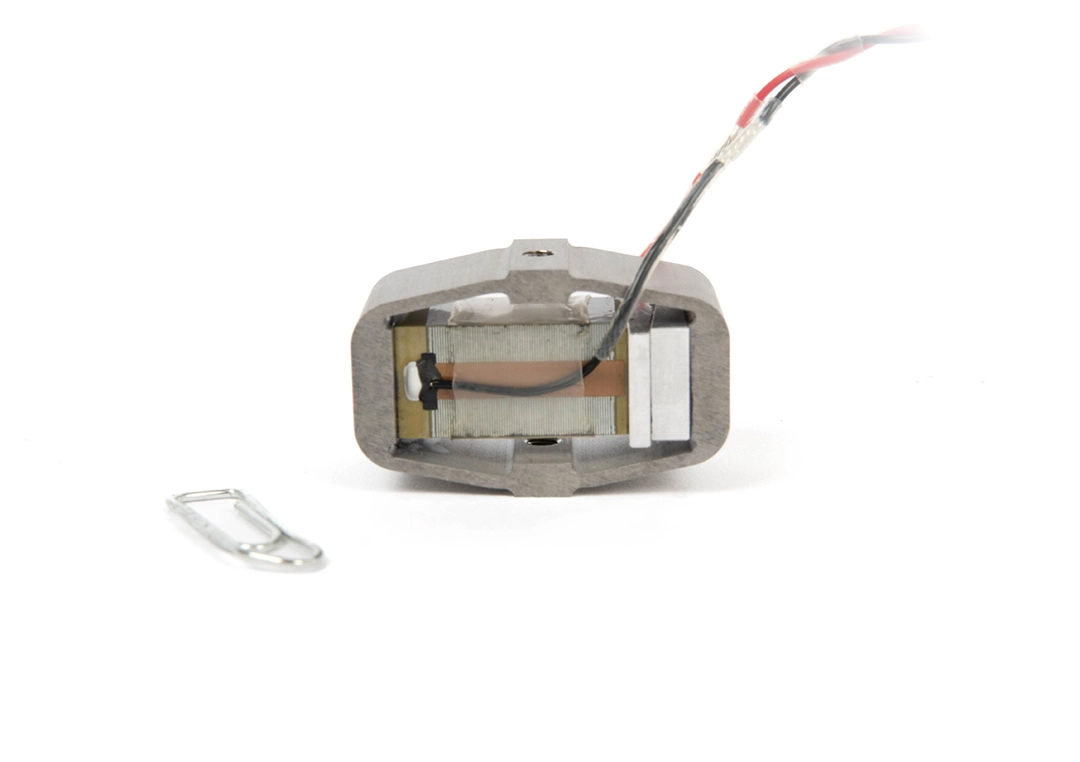

APA60SL

Amplified Piezo Actuator

Applications: Active clamping

Blocked Force	390
Capacitance	6,2
Nominal Stroke	57
Stiffness	6,8
Resonance frequency	3120
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Download 2D file
Download STEP file
Technical datasheet

Categories Amplified piezo actuator, Piezo actuators

Cedrat technologies

Innovation

Cedrat technologies

Amplified Piezo Actuator

Blocked Force	770
Capacitance	77
Nominal Stroke	1100
Stiffness	0,7
Resonance frequency	212
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	99
Capacitance	26
Nominal Stroke	1480
Stiffness	0,07
Resonance frequency	135
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	46
Capacitance	1,1
Nominal Stroke	140
Stiffness	0,33
Resonance frequency	1340
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Applications: Active clamping

Blocked Force	390
Capacitance	6,2
Nominal Stroke	57
Stiffness	6,8
Resonance frequency	3120
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Download 2D file
Download STEP file
Technical datasheet
