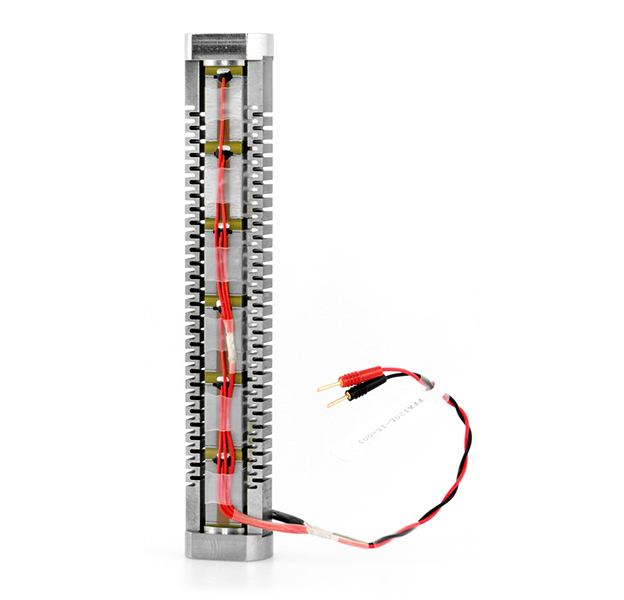

PPA120L

Parallel Pre-Stressed Actuator

Applications: Active control of vibration – Oval piston machining – Heavy local positioning

Blocked Force	3500
Capacitance	26
Nominal Stroke	130
Stiffness	26,9
Resonance frequency	3260
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Cedrat technologies

Innovation

Cedrat technologies

Amplified Piezo Actuator

Blocked Force	230
Capacitance	2,2
Nominal Stroke	125
Stiffness	1,9
Resonance frequency	1910
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	140
Capacitance	1,1
Nominal Stroke	77
Stiffness	1,8
Resonance frequency	2802
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	62
Capacitance	26
Nominal Stroke	2010
Stiffness	0,03
Resonance frequency	87
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Applications: Active control of vibration – Oval piston machining – Heavy local positioning

Blocked Force	3500
Capacitance	26
Nominal Stroke	130
Stiffness	26,9
Resonance frequency	3260
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard
