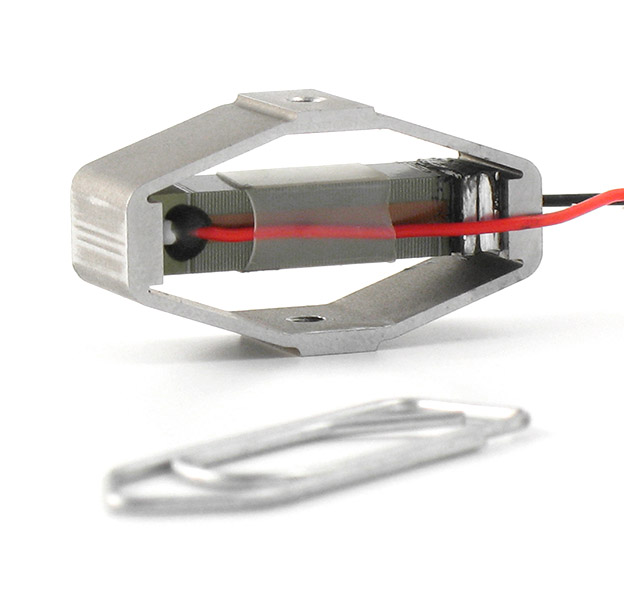

APA40SM

Amplified Piezo Actuator

Applications: Shock energy harvester in wireless switches – Material stress cycling – Injectors

Blocked Force	260
Capacitance	1,1
Nominal Stroke	54
Stiffness	4,9
Resonance frequency	4130
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Categories Amplified piezo actuator, Piezo actuators

Cedrat technologies

Innovation

Cedrat technologies

Amplified Piezo Actuator

Blocked Force	580
Capacitance	26
Nominal Stroke	510
Stiffness	1,1
Resonance frequency	456
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	130
Capacitance	1,1
Nominal Stroke	75
Stiffness	1,7
Resonance frequency	2860
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	27
Capacitance	0,3
Nominal Stroke	52
Stiffness	0,52
Resonance frequency	3880
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Applications: Shock energy harvester in wireless switches – Material stress cycling – Injectors

Blocked Force	260
Capacitance	1,1
Nominal Stroke	54
Stiffness	4,9
Resonance frequency	4130
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet
