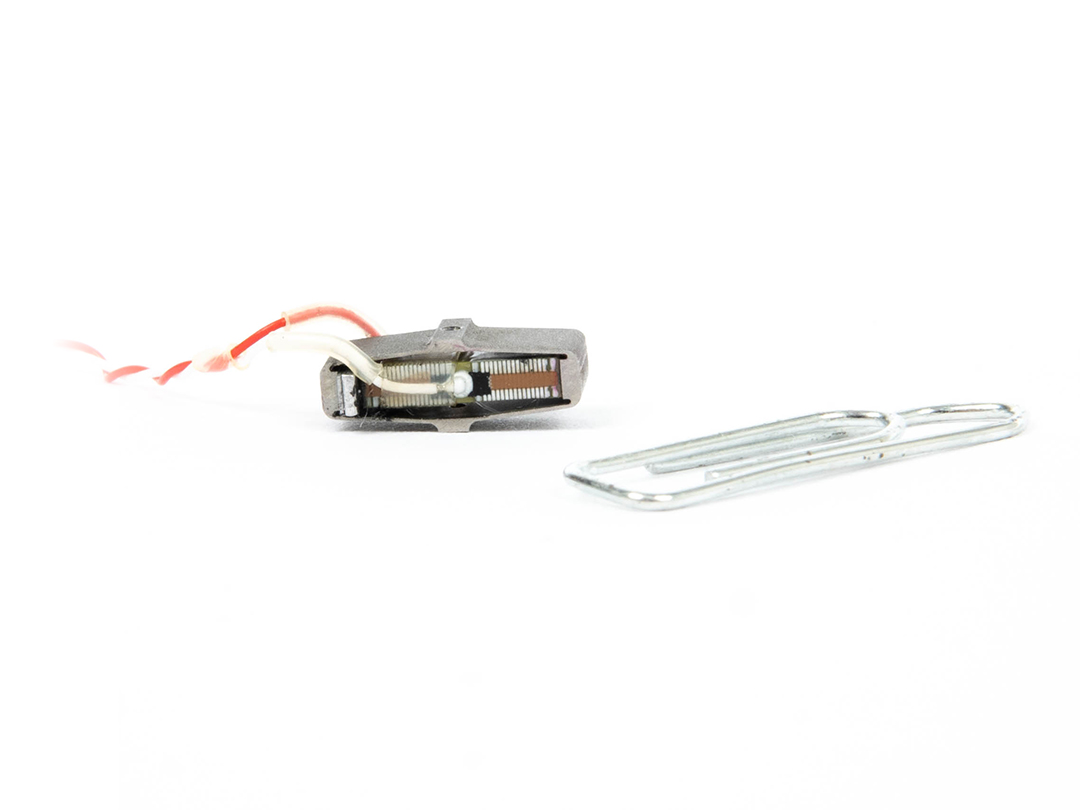

APA50XS

Amplified Piezo Actuator

Applications: Micro optical mechanisms – Micro controllers dynamic valves – Space qualified micro tips tilts – Miniature brakes

Blocked Force	16
Capacitance	0,3
Nominal Stroke	66
Stiffness	0,24
Resonance frequency	2730
Available options	Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Categories Amplified piezo actuator, Piezo actuators
