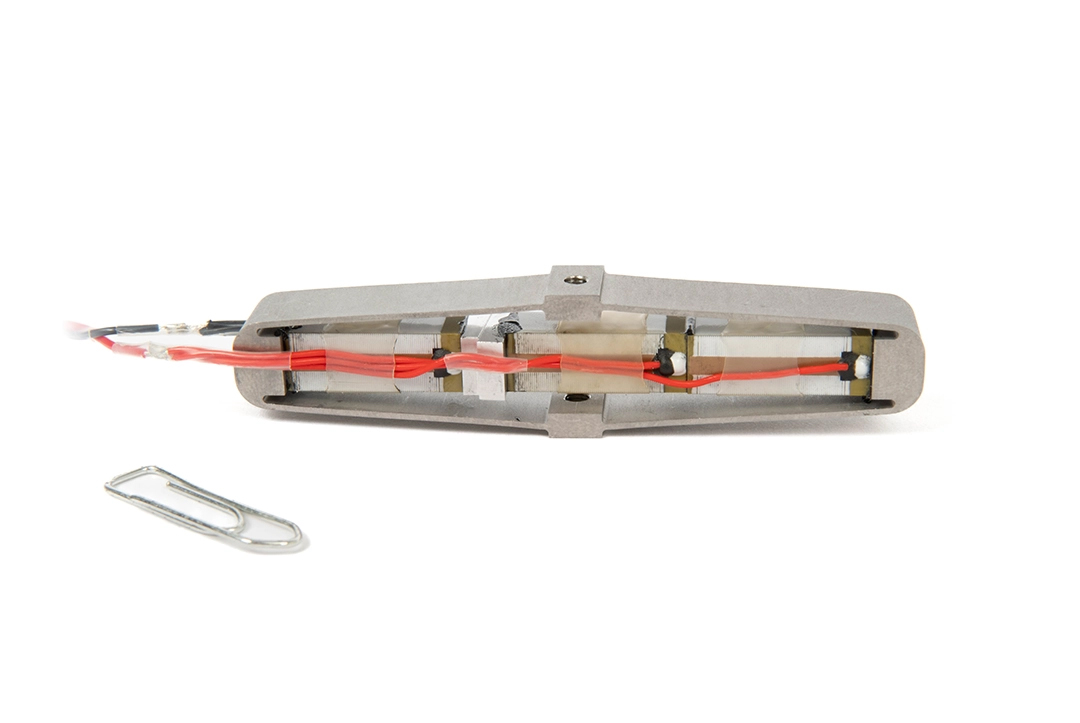

APA600MML

Amplified Piezo Actuator

Applications: Active stabilisation of a watt balance – High frequency shakers – Elasto MRI – Long range cavity modulation in interferometers

Blocked Force	78
Capacitance	6,3
Nominal Stroke	650
Stiffness	0,12
Resonance frequency	323
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 2D file
Download STEP file
Technical datasheet

Categories Amplified piezo actuator, Piezo actuators
