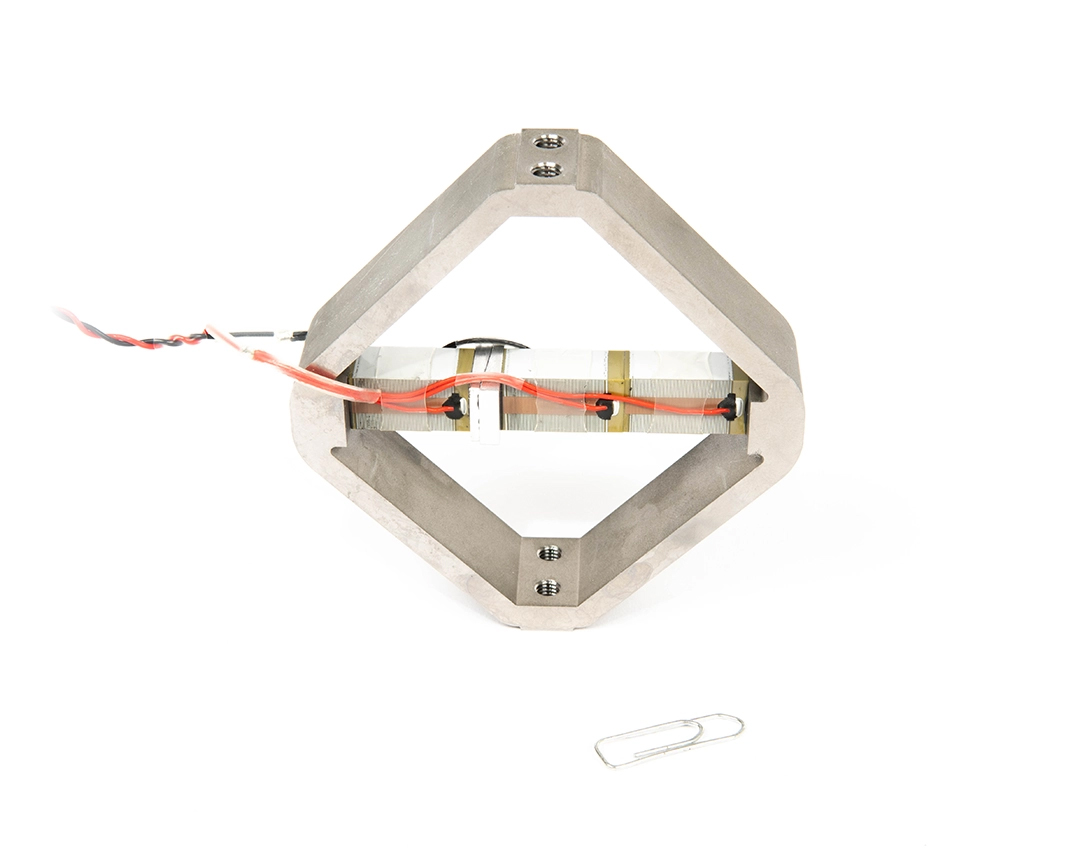

APA60ML

Amplified Piezo Actuator

Applications: Shaker – Force generator – Heavy load positionner – Dynamic Actuator

Blocked Force	3300
Capacitance	13
Nominal Stroke	65
Stiffness	51
Resonance frequency	2555
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Download 2D file
Download STEP file
Technical datasheet

Categories Amplified piezo actuator, Piezo actuators
