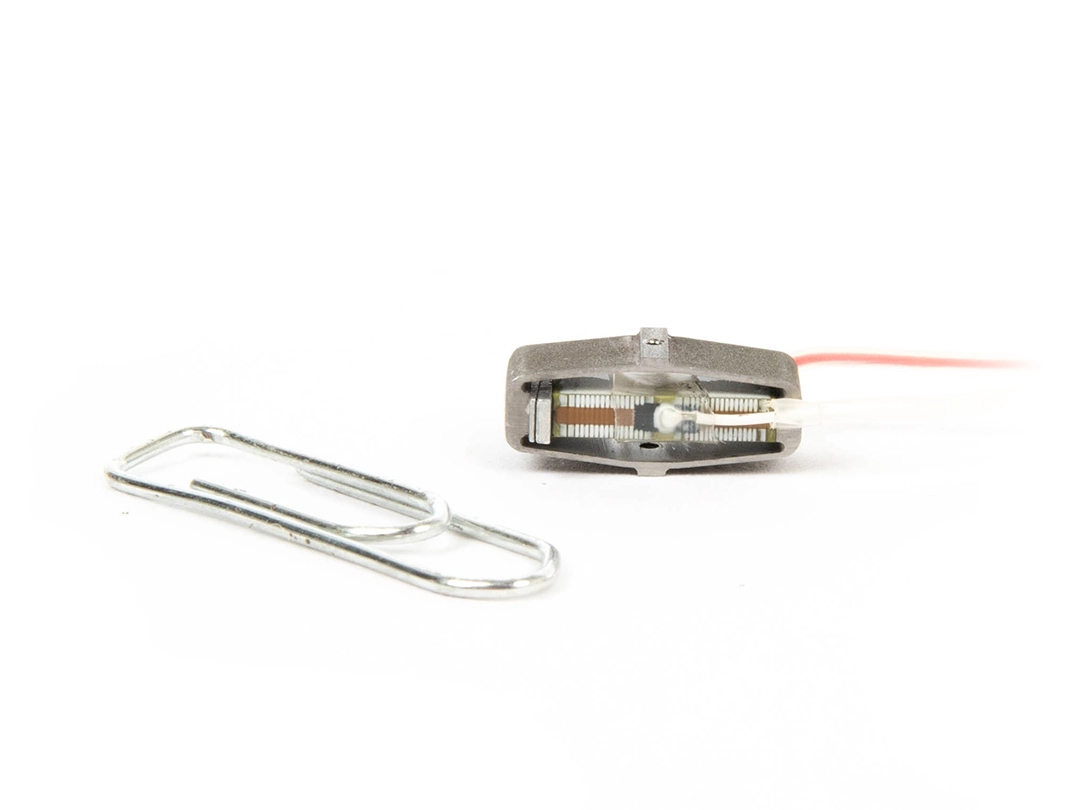

APA35XS

Amplified Piezo Actuator

Applications: Micro optical mechanisms – Micro controllers dynamic valves – Space qualified micro tips tilts – Miniature brakes

Blocked Force	27
Capacitance	0,3
Nominal Stroke	52
Stiffness	0,52
Resonance frequency	3880
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet
