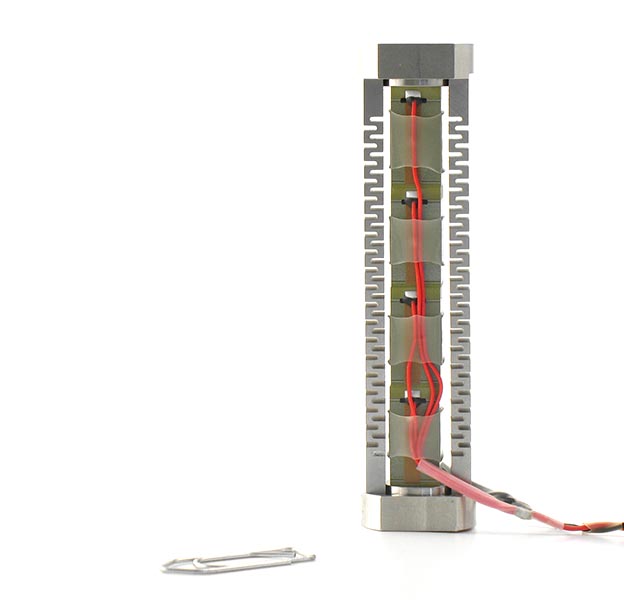

PPA80L

Parallel Pre-Stressed Actuator

Applications: Active control of vibration – Oval piston machining – Heavy local positioning

Blocked Force	3500
Capacitance	18
Nominal Stroke	85
Stiffness	41,2
Resonance frequency	4670
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Cedrat technologies

Innovation

Cedrat technologies

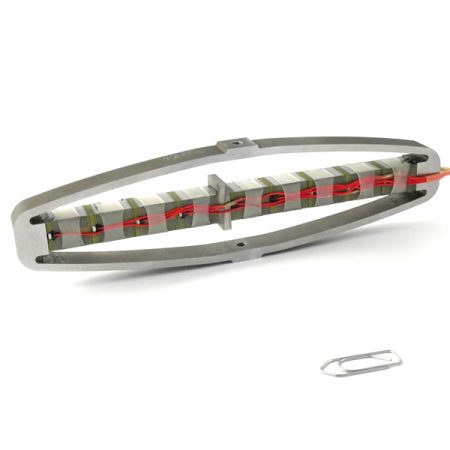

Amplified Piezo Actuator

Blocked Force	3300
Capacitance	13
Nominal Stroke	65
Stiffness	51
Resonance frequency	2555
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

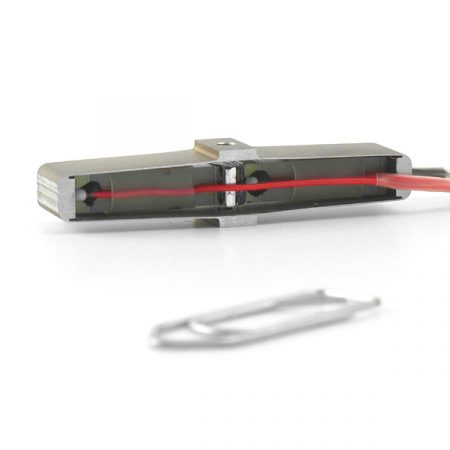

Amplified Piezo Actuator

Blocked Force	130
Capacitance	1,1
Nominal Stroke	75
Stiffness	1,7
Resonance frequency	2860
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	24
Capacitance	2,2
Nominal Stroke	550
Stiffness	0,04
Resonance frequency	316
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Applications: Active control of vibration – Oval piston machining – Heavy local positioning

Blocked Force	3500
Capacitance	18
Nominal Stroke	85
Stiffness	41,2
Resonance frequency	4670
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard
