Strain Gauge Sensor

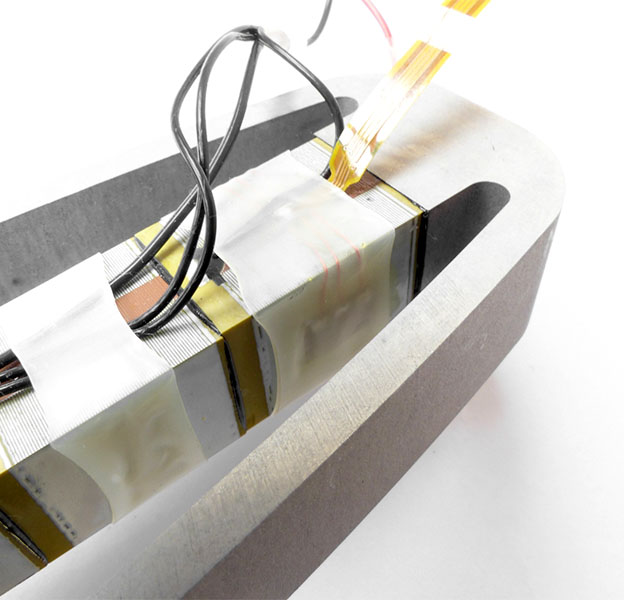

The SG Strain Gauge Sensor is a contact sensor which is bonded to the ceramics in order to measure their deformation

Bridge impedance	350 Ohms
Bridge sensitivity	1,33 uV/ppm/V
Empty Compatibility	Oui
Available options	Other interfaces on request
Status	Integrated product

Technical datasheet
