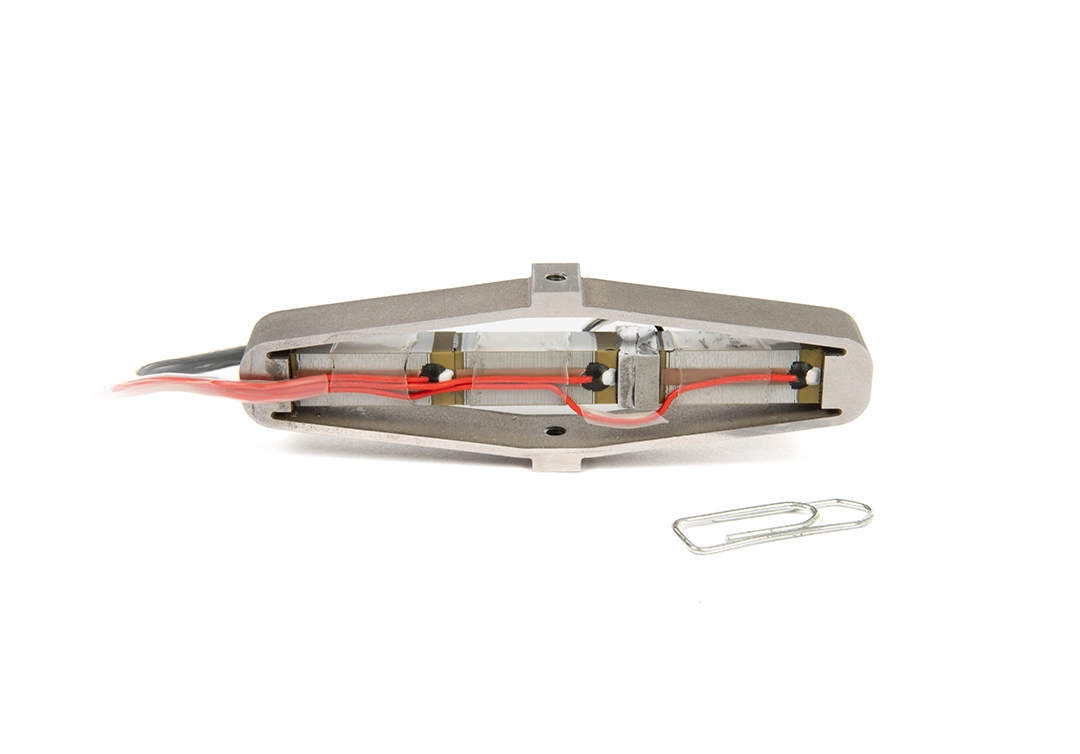

APA400MML

Amplified Piezo Actuator

Applications: Active stabilisation of a watt balance – High frequency shakers – Elasto MRI – Long range cavity modulation in interferometers

Blocked Force	180
Capacitance	6,3
Nominal Stroke	355
Stiffness	0,52
Resonance frequency	634
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Categories Amplified piezo actuator, Piezo actuators
