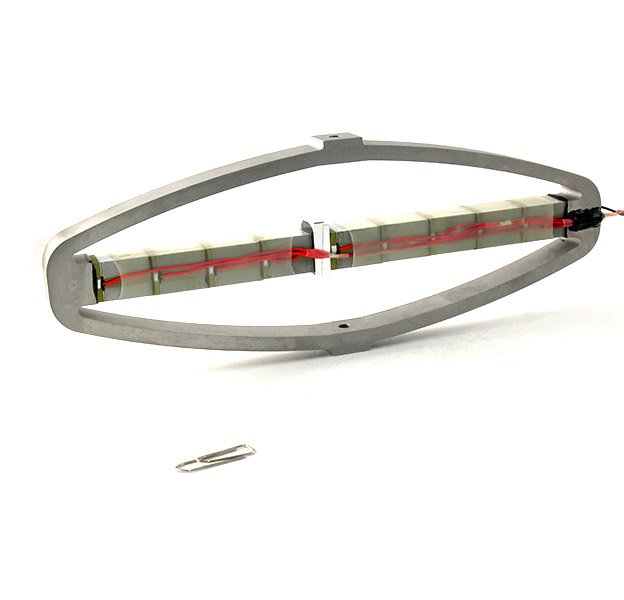

APA500XL

Amplified Piezo Actuator

Applications: High frequency shakers – Fretting fatigue testing – Positioning of heavy loads – Force testing

Blocked Force	1400
Capacitance	77
Nominal Stroke	590
Stiffness	2,4
Resonance frequency	345
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Categories Amplified piezo actuator, Piezo actuators
