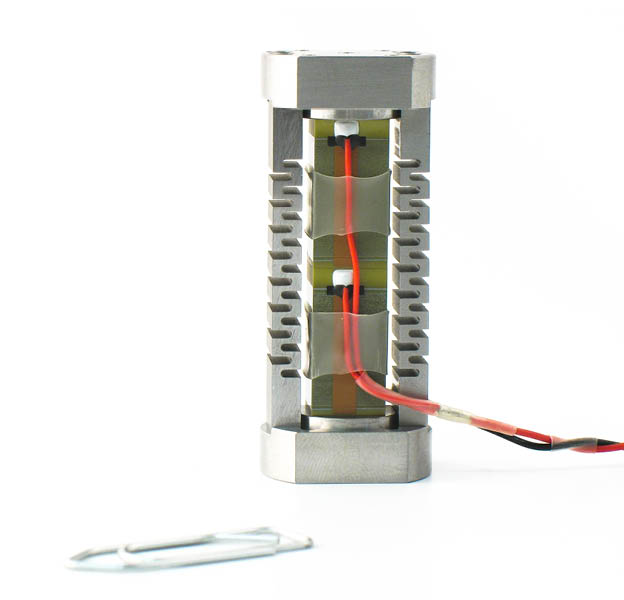

PPA40L

Parallel Pre-Stressed Actuator

Applications: Active control of vibration – Oval piston machining – Heavy local positioning

Blocked Force	3500
Capacitance	8,8
Nominal Stroke	44
Stiffness	79,5
Resonance frequency	8320
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Cedrat technologies

Innovation

Cedrat technologies

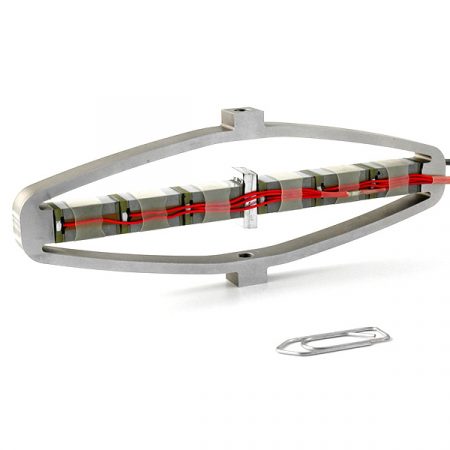

Amplified Piezo Actuator

Blocked Force	580
Capacitance	26
Nominal Stroke	510
Stiffness	1,1
Resonance frequency	456
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	260
Capacitance	1,1
Nominal Stroke	54
Stiffness	4,9
Resonance frequency	4130
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	16
Capacitance	0,3
Nominal Stroke	66
Stiffness	0,24
Resonance frequency	2730
Available options	Non-magnetic shell, Vacuum Compatibility
Status	Standard

Applications: Active control of vibration – Oval piston machining – Heavy local positioning

Blocked Force	3500
Capacitance	8,8
Nominal Stroke	44
Stiffness	79,5
Resonance frequency	8320
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet
