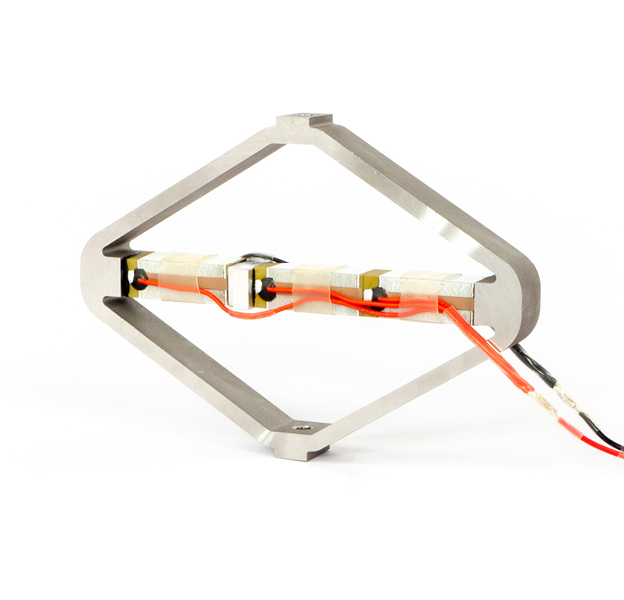

APA100MML

Amplified Piezo Actuator

Applications: Active stabilisation of a watt balance – High frequency shakers – Elasto MRI – Long range cavity modulation in interferometers

Blocked Force	830
Capacitance	6,3
Nominal Stroke	100
Stiffness	8,3
Resonance frequency	1730
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Categories Amplified piezo actuator, Piezo actuators

Cedrat technologies

Innovation

Cedrat technologies

Amplified Piezo Actuator

Blocked Force	390
Capacitance	6,2
Nominal Stroke	57
Stiffness	6,8
Resonance frequency	3120
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	180
Capacitance	6,3
Nominal Stroke	355
Stiffness	0,52
Resonance frequency	634
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	130
Capacitance	2,2
Nominal Stroke	185
Stiffness	0,68
Resonance frequency	1300
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Applications: Active stabilisation of a watt balance – High frequency shakers – Elasto MRI – Long range cavity modulation in interferometers

Blocked Force	830
Capacitance	6,3
Nominal Stroke	100
Stiffness	8,3
Resonance frequency	1730
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet
