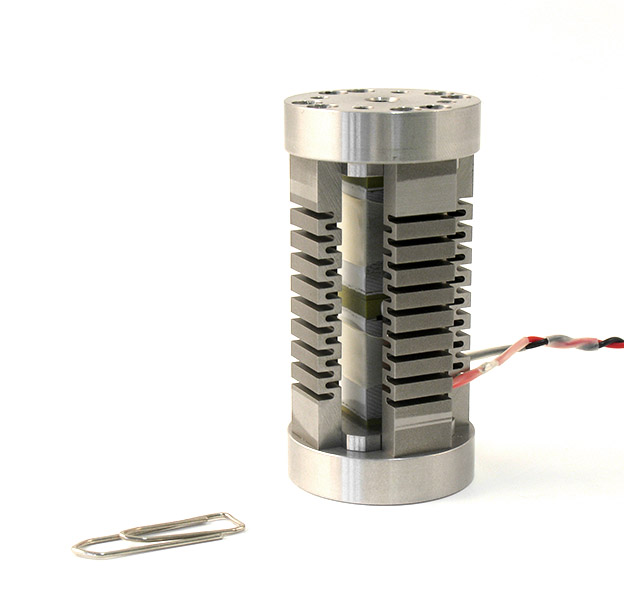

PPA40XL

Parallel Pre-Stressed Actuator

Applications: Stabilisation of heavy loads in precision machine tool – Fretting fatigue testing – High frequency shakers

Blocked Force	7000
Capacitance	17
Nominal Stroke	43
Stiffness	162,8
Resonance frequency	8040
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Cedrat technologies

Innovation

Cedrat technologies

Amplified Piezo Actuator

Blocked Force	78
Capacitance	6,3
Nominal Stroke	650
Stiffness	0,12
Resonance frequency	323
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	34
Capacitance	2,2
Nominal Stroke	455
Stiffness	0,07
Resonance frequency	423
Available options	Strain gauge, Vacuum Compatibility
Status	Standard

Amplified Piezo Actuator

Blocked Force	3,7
Capacitance	0,04
Nominal Stroke	34
Stiffness	0,11
Resonance frequency	4778
Available options	Non-magnetic shell, Vacuum Compatibility
Status	Standard

Applications: Stabilisation of heavy loads in precision machine tool – Fretting fatigue testing – High frequency shakers

Blocked Force	7000
Capacitance	17
Nominal Stroke	43
Stiffness	162,8
Resonance frequency	8040
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet
