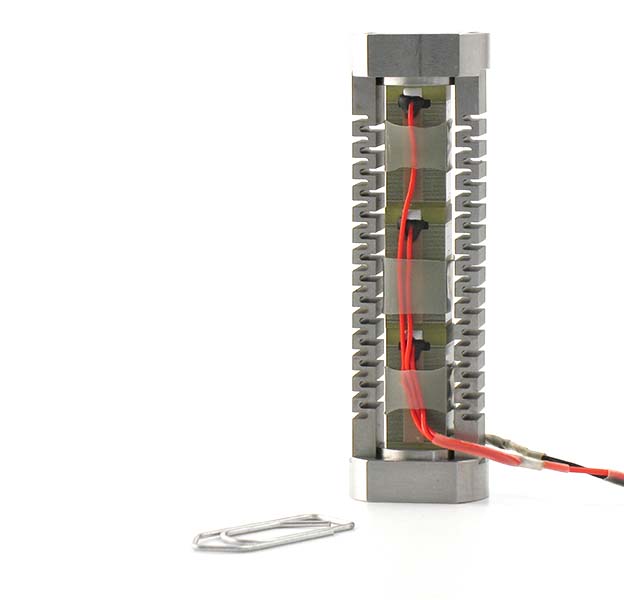

PPA60L

Parallel Pre-Stressed Actuator

Applications: Active control of vibration – Oval piston machining – Heavy local positioning

Blocked Force	3500
Capacitance	13
Nominal Stroke	67
Stiffness	52,2
Resonance frequency	5980
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet

Cedrat technologies

Innovation

Cedrat technologies

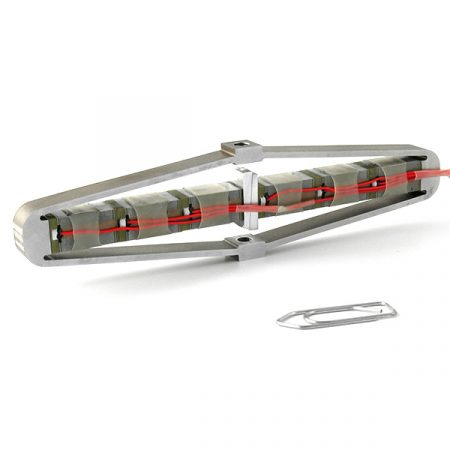

Amplified Piezo Actuator

Blocked Force	350
Capacitance	26
Nominal Stroke	870
Stiffness	0,4
Resonance frequency	290
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

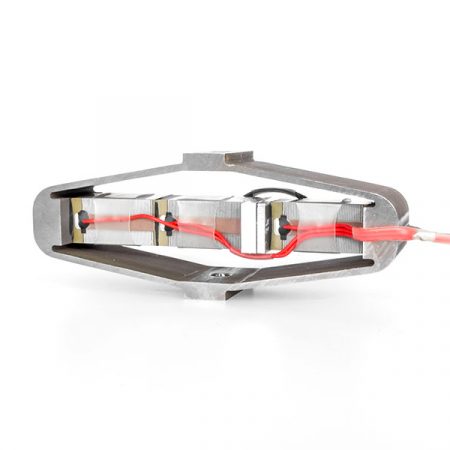

Amplified Piezo Actuator

Blocked Force	140
Capacitance	1,1
Nominal Stroke	77
Stiffness	1,8
Resonance frequency	2802
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

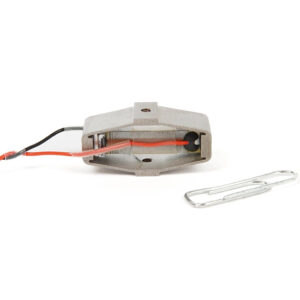

Amplified Piezo Actuator

Blocked Force	16
Capacitance	0,3
Nominal Stroke	66
Stiffness	0,24
Resonance frequency	2730
Available options	Non-magnetic shell, Vacuum Compatibility
Status	Standard

Applications: Active control of vibration – Oval piston machining – Heavy local positioning

Blocked Force	3500
Capacitance	13
Nominal Stroke	67
Stiffness	52,2
Resonance frequency	5980
Available options	Strain gauge, Non-magnetic shell, Vacuum Compatibility
Status	Standard

Download 3D file
Download 2D file
Download STEP file
Technical datasheet
